GS630TT

Programmable structured grating PMP imaging technology (PSLM PMP) uses German PSLM components with internationalcutting-edge technology. [Ten-year free warranty]

The object under inspection is sampled 8 times to ensure the high repeatability and accuracy of the equipment detection.

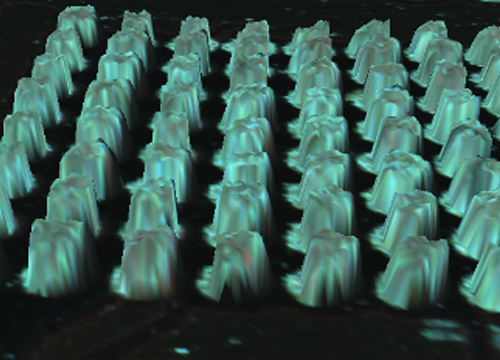

Example of the PMP phase modulation profilometry technology principle

The white light source used by conventional SPI will not affect the color of the PCB, but for black (Dark PCB) and high brightness PCB boards (ceramic PCB), since the reflection degree of these two PCBs to the structured grating is different from that of ordinary PCBs, darker images will be displayed during imaging. Data accuracy is affected and false alarms will increase significantly.

The D-Lighting technology used by S-Tech uses 4 photos in a group of 8 sampled photos, using high exposure mode and low exposure mode respectively. In the setting software, you can choose black, normal, and high brightness options. Perfectly handle PCB boards with different reflectivity and different colors.

Through RGB TUNE effective filtering of solder paste, white lines, and debris, false judgments of solder paste bridging can be perfectly resolved.

The unique Multi-Head optical source technology has obtained a national invention patent and uses 3 different colors of structured light to detect solder pastefrom different angles with an interval of 120°.

Flexible configuration to meet customer needs, optional single head, double head or multi-head.

Compared with the traditional white structured grating alternately taking pictures, Multi-Head can take pictures in multiple directions at the same time, which improves the detection speed.
